- Bearing Type: Ceramic Dual Ball Bearing
- Cooling System: Oil &, Water Cooled
- Turbine Housing: Externally Wastegated, available in 0.63a/r, 0.82a/r and 1.06a/r
- Base Flange: T3 Single Entry
- Exhaust Outlet Flange: V-Band (3.0"")
- Horsepower: 425-750hp
- Displacement: 2.0L - 5.3L
Product Information:

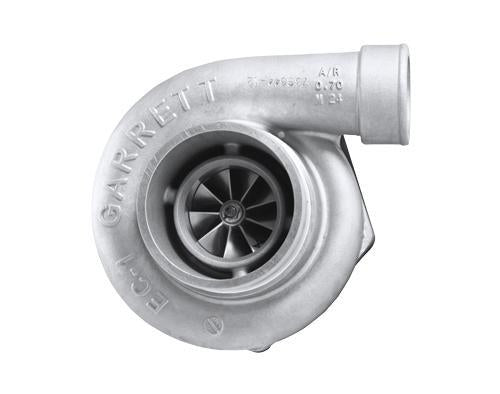

This custom built GTW3684R Turbocharger comes with a Garrett T3 Single Entry Inlet, V-Band Outlet Turbine Housing, with ratio options of 0.63a/r, 0.82a/r and 1.06a/r. Utilizing a T3 single entry mounting flange allows this turbocharger to suit common off the shelf exhaust manifolds, and also allows direct interchanges with previous turbocharger versions (GT3082R / GT3582R / GTX3582R GEN I).
The Turbine Outlet V-Band clamp is included, but the turbine outlet flanges are sold separately.
Garrett GTW Features
- Ported Shroud design for surge resistance
- Forged Fully-Machined Billet Compressor Wheel
- Lightweight Aluminium Back plate
- Inconel Super-Alloy Turbine Wheel
